Model |
VR5M INSO |
||||||||||
|
Hose diameter (mm) |
100 |
100 |
110 |
110 |
110 |
120 |
125 |
125 |
125 |
135 |
140 |
|
Hose length (m) |
450 |
500 |
400 |
450 |
470 |
400 |
320 |
350 |
380 |
300 |
290 |
|

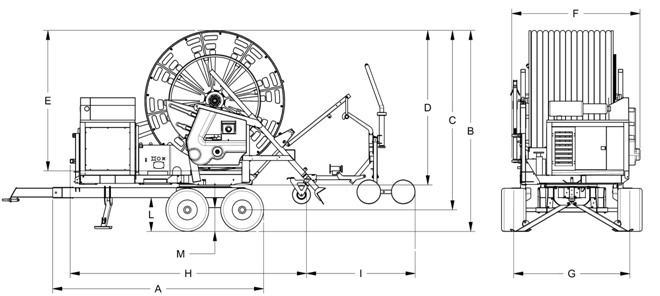

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
I cm. |
L cm. |
M cm. |
|
VR5M INSO |
425 |
403 |
360 |
310 |
280 |
260 |
180-220 |
475 |
220 |
68 |
47 |
|
Model |
VR6M INSO |
||||||||
|
Hose diameter (mm) |
100 |
110 |
110 |
110 |
120 |
125 |
125 |
135 |
140 |
|
Hose length (m) |
600 |
500 |
550 |
570 |
460 |
400 |
440 |
380 |
350 |
|
Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
I cm. |
L cm. |
M cm. |
|
VR6M INSO |
425 |
435 |
390 |
340 |
309 |
260 |
180-220 |
475 |
220 |
68 |
47 |
|
Model |
VR7M INSO |
|||||||||||||
|
Hose diameter (mm) |
100 |
110 |
110 |
120 |
125 |
125 |
135 |
140 |
||||||
|
Hose length (m) |
650 |
550 |
600 |
540 |
450 |
500 |
400 |
380 |
||||||
|
Model |
VR7M/1 INSO |
|||||||||||||
|
Hose diameter (mm) |
110 |
110 |
120 |
125 |
125 |
135 |
140 |
|||||||
|
Hose length (m) |
700 |
750 |
620 |
550 |
600 |
460 |
450 |
|||||||
|
Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
I cm. |
L cm. |
M cm. |
|
VR7M INSO |
425 |
435 |
390 |
340 |
309 |
260 |
180-220 |
475 |
220 |
68 |
47 |
Standard Equipment
- Set of nozzles - different diameters
- Winding handle
- Computer Rain Control 3 + GSM
- Pressure gauge (glycerine bath)
- Safety guards
- Hot galvanized chassis and turret
- Reel coated by epoxy resin and painted with polyurethane paint
- Safety guards made of steel, swaged galvanized and painted
- Built-in motorpump with ENGINE IVECO N45MSSA00, revolving coupling and PUMP
CAPRARI MEC MG 80-4/3A
- Soundproof engine
- 700 liters fuel tank
- Residencial exhaust silencer
- Control panel
- Priming system by depression KIRPY
- Revolving coupling at motorpump suction
- Hydraulic brakes on 2 wheels
- Hydraulic support of suction device
- Remote control
- Additional hydraulic control with levers
- 4 wheel chassis
- Hydraulic lifting device of trolley
- Telescopic hydraulic feet
- Stabilizers on drawbar
- Hydraulic rotation of turntable
- 4 speed VR gearbox
- Power take off
- Galvanized raingun trolley mounted on variable track wheels
- Raingun
- Wheels 19.0/45-17 14PR
- Polyethylene hose made by unadulterated raw material
