Model |
VIR4 |
|||||||||||
|
Hose diameter (mm) |
82 |
90 |
90 |
90 |
90 |
100 |
100 |
100 |
110 |
110 |
110 |
120 |
|
Hose length (m) |
500 |
380 |
400 |
470 |
500 |
340 |
360 |
390 |
300 |
330 |
350 |
270 |
|

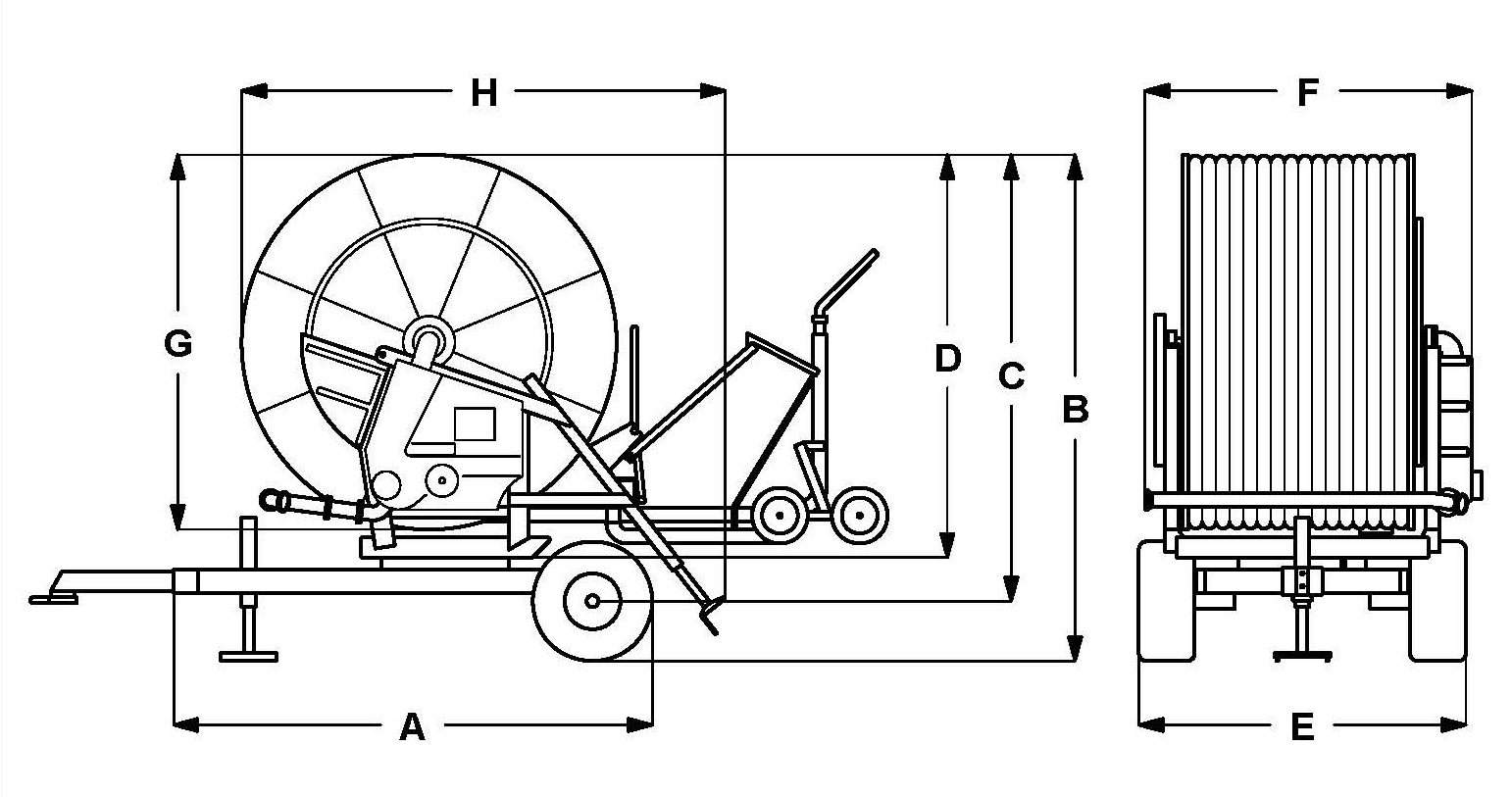

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
|
VIR4 |
348 |
332 |
293 |
281 |
224 |
243 |
246 |
Standard Equipment
- Telescopic hydraulic feet
- 3 speed VR gearbox
- Power take off
- Turbine flanged on the gearbox with built-in by-pass
- Flexible connection pipe
- Galvanized raingun trolley mounted on variable track wheels
- Raingun
- Set of nozzles - different diameters
- Pressure gauge (glycerine bath)
- For hose Ø 110-120 inlet water Bauer Ø 108
- Speed equalizer
- Tachometer
- Safety guards
- Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
- Safety guards made of steel, swaged galvanized and painted
- Galvanized double water inlet
- Hydraulic lifting device of trolley
- Hydraulic rotation of turntable
- Hydraulic lifting of drawbar
- For hose diam. 82-90-100 water inlet Bauer Ø 89
- Polyethylene hose made by unadulterated raw material
