Model |
VIR5M |
|||||||||||||||||
|
Hose diameter (mm) |
100 |
100 |
110 |
110 |
110 |
120 |
125 |
125 |
125 |
135 |
140 |
|||||||
|
Hose length (m) |
450 |
500 |
400 |
450 |
470 |
400 |
320 |
350 |
380 |
300 |
290 |
|||||||
|
Model |
VIR6M |
|||||||||||||||||
|
Hose diameter (mm) |
100 |
110 |
110 |
110 |
120 |
125 |
125 |
135 |
140 |
|||||||||
|
Hose length (m) |
600 |
500 |
550 |
570 |
460 |
400 |
440 |
380 |
350 |
|||||||||
|

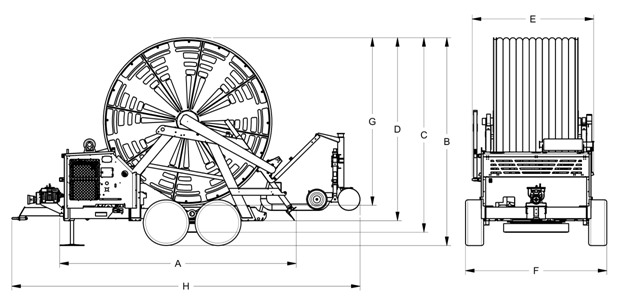

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
|
VIR5M |
420 |
366 |
330 |
312 |
245 |
280 |
280 |
750 |
|
VIR6M |
430 |
395 |
360 |
341 |
245 |
280 |
309 |
750 |
Standard Equipment
- Telescopic hydraulic feet
- 4 speed VR gearbox
- Power take off
- Turbine flanged on the gearbox with built-in by-pass
- Flexible connection pipe
- Galvanized raingun trolley mounted on variable track wheels
- Raingun
- Set of nozzles - different diameters
- Pressure gauge (glycerine bath)
- Winding handle
- For hose diam. 135-140 water inlet Bauer Ø 133
- Speed equalizer
- Tachometer
- Hydraulic system by rapid couplings to tractor
- Safety guards
- Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
- Safety guards made of steel, swaged galvanized and painted
- Galvanized double water inlet
- Hydraulic lifting device of trolley
- Hydraulic rotation of turntable
- Hydraulic lifting of drawbar
- For hose diam. 100-110-120-125 water inlet Bauer Ø 108
- Polyethylene hose made by unadulterated raw material
