Model |
VIR9A |
||||||||
|
Hose diameter (mm) |
110 |
110 |
125 |
135 |
140 |
150 |
150 |
160 |
160 |
|
Hose length (m) |
800 |
850 |
680 |
550 |
530 |
450 |
480 |
350 |
380 |
|

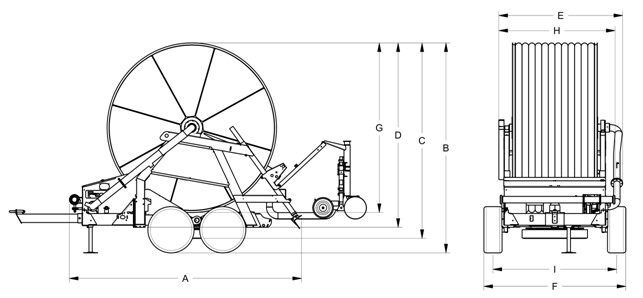

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
|
VIR9A |
490 |
427 |
402 |
378 |
265 |
312 |
345 |
250 |
|
Model |
VIR10A |
|||||||||||||||
|
Hose diameter (mm) |
125 |
125 |
135 |
135 |
135 |
135 |
140 |
140 |
140 |
140 |
150 |
150 |
150 |
160 |
160 |
160 |
|
Hose length (m) |
750 |
820 |
600 |
650 |
700 |
750 |
550 |
600 |
630 |
700 |
500 |
550 |
600 |
400 |
450 |
480 |
|
Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
|
VIR10A |
498 |
450 |
420 |
396 |
265 |
312 |
363 |
250 |
Standard Equipment
- Hydraulic lifting of drawbar
- 4 speed VR gearbox
- Power take off
- Turbine flanged on the gearbox with double built-in by-pass
- Flexible connection pipe
- Galvanized raingun trolley mounted on variable track wheels
- Pressure gauge (glycerine bath)
- Raingun
- Set of nozzles - different diameters
- Winding handle
- For hose diam. 135-140-150 water inlet Bauer Ø 133
- Computer Aqua System
- Hose retraction by double chain
- Hydraulic system by rapid couplings to tractor
- Safety guards
- Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
- Safety guards made of steel, swaged galvanized and painted
- Galvanized double water inlet
- 4 wheel chassis
- Hydraulic lifting device of trolley
- Hydraulic rotation of turntable
- Telescopic hydraulic feet
- For hose diam. 110-120-125 water inlet Bauer Ø 108
