Model |
R4A |
R4/1A |
|||||||||||||||
|
Hose diameter (mm) |
90 |
90 |
100 |
100 |
100 |
110 |
110 |
110 |
125 |
110 |
110 |
110 |
120 |
125 |
125 |
125 |
140 |
|
Hose length (m) |
500 |
570 |
400 |
450 |
500 |
300 |
330 |
350 |
250 |
400 |
420 |
450 |
380 |
300 |
350 |
370 |
260 |
|

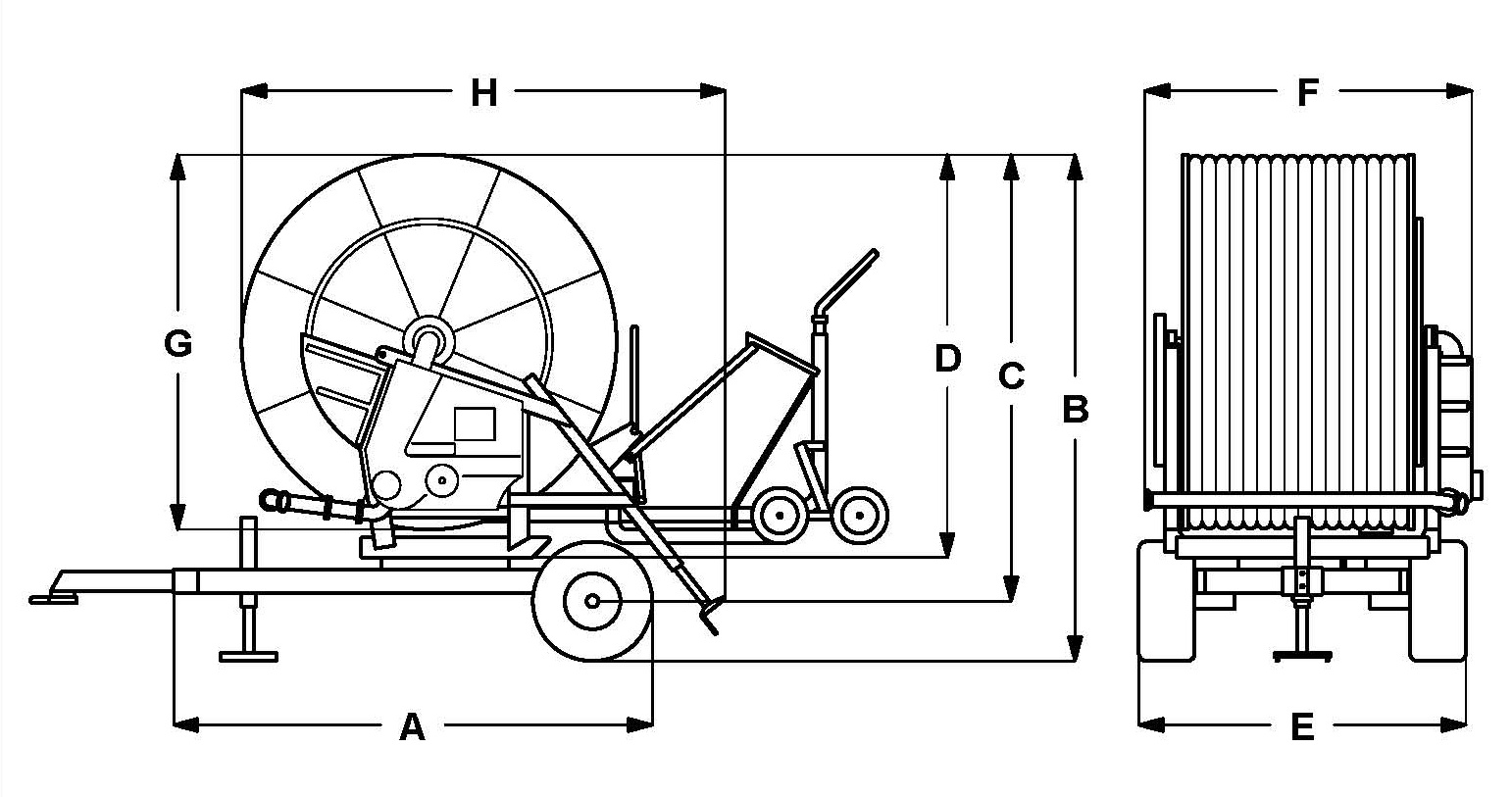

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
|
R4A |
360 |
353 |
318 |
286 |
228 |
225 |
268 |
325 |
|
R4/1A |
375 |
360 |
331 |
303 |
240 |
247 |
280 |
335 |
|
R4/2A |
375 |
385 |
345 |
330 |
243 |
247 |
309 |
360 |
|
Model |
R4/2A |
|||||||||||
|
Hose diameter (mm) |
100 |
100 |
110 |
110 |
110 |
120 |
125 |
125 |
135 |
135 |
140 |
140 |
|
Hose length (m) |
550 |
600 |
500 |
530 |
550 |
440 |
400 |
420 |
350 |
370 |
300 |
350 |
Standard Equipment
- Hydraulic lifting device of trolley
- Telescopic mechanical feet
- 4 Speed gearbox
- Power take off
- Turbine flanged on the gearbox with built-in by-pass
- Flexible connection pipe
- Galvanized raingun trolley mounted on variable track wheels
- Galvanized double water inlet
- Raingun
- Set of nozzles - different diameters
- Pressure gauge (glycerine bath)
- Mechanical lifting of drawbar
- Winding handle
- Speed equalizer
- Tachometer
- Safety guards
- Hot galvanized chassis and turret
- Reel coated by epoxy resin and painted with polyurethane paint
- Safety guards made of steel, swaged galvanized and painted
- Polyethylene hose made by unadulterated raw material
