Model |
R2/1A |
R2/1B |
||||||||||
|
Hose diameter (mm) |
75 |
75 |
82 |
82 |
90 |
90 |
90 |
100 |
100 |
100 |
110 |
|
|
Hose length (m) |
350 |
400 |
350 |
400 |
280 |
300 |
350 |
275 |
250 |
300 |
200 |
|
|

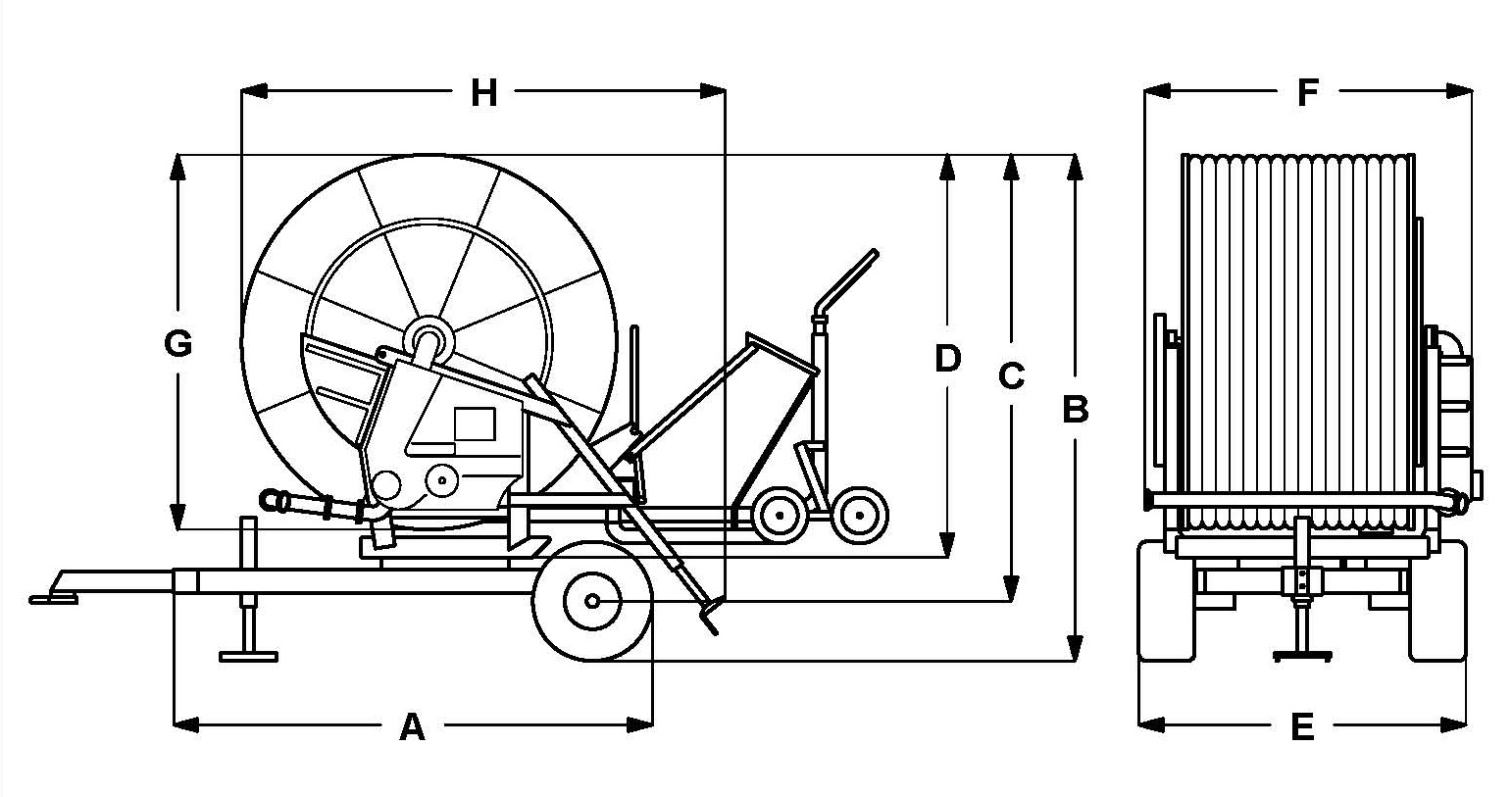

Model |
A cm. |
B cm. |
C cm. |
D cm. |
E cm. |
F cm. |
G cm. |
H cm. |
|
R2/1A – R2/1B |
330 |
296 |
265 |
245 |
205 |
225 |
224 |
280 |
Standard Equipment
- Mechanical lifting device of trolley
- Telescopic mechanical feet
- 3 Speed gearbox
- Power take off
- Turbine flanged on the gearbox with built-in by-pass
- Flexible connection pipe
- Galvanized raingun trolley mounted on variable track wheels
- Galvanized double water inlet
- Raingun
- Set of nozzles - different diameters
- Pressure gauge (glycerine bath)
- Winding handle
- Speed equalizer
- Safety guards
- Hot galvanized chassis and turret
- Reel coated by epoxy resin and painted with polyurethane paint
- Polyethylene hose made by unadulterated raw material
